Name: Fixed Radio AWT GTT 810
Brand: AllWayTon

Fixed Radio AWT GTT 810

Introduction

The AWT Fixed Radio (GTT 810) is a GSM-R desktop handsfree communication terminal manufactured by Beijing AllWayTon Co., Ltd. Users can select the AWT OPS230R FC or AWT OPH210R FC module for configuration, enabling all GSM-R railway communication functions through handsfree operation. Equipped with a PTT button, microphone, loudspeaker, and volume knob, it is easy to operate and ideal for dispatch rooms, control centers, and other fixed office environments.

The AWT GTT 810 is fully compliant with the EIRENE specification and supports all GSM-R railway communication functions including Voice Group Call (VGCS), Voice Broadcast Service (VBS), eMLPP, functional numbering, Follow Me, location-dependent addressing, and railway emergency calls, providing a stable and reliable desktop communication solution for railway operators.

Features: Voice Group Call (VGCS); Voice Broadcast Service (VBS); Enhanced Multi-Level Precedence and Pre-emption (eMLPP); Function numbering; Follow me; Location dependent addressing; Railway emergency calls; GPRS class 10; Supplementary service; Voice Call recording; Cell Monitor, Cell lock (option); Man down function (option); Android V5.0 Platform; Background noise reduction 20dB; Perfect voice echo suppression

Specifications: EGSM-R, EGSM900, GSM1800, GSM1900; ETSI TS 102 933 interference resistant supported; Power class 4, 2W, HR/FR/EFR/AMR; Power supply: 5 VDC; Power consumption: max. 15 W; Operating temperature: +5°C to 40°C; Storage temperature: -25°C to 55°C; EMC: according to DIN EN 50121-4; Relative humidity: 5% to 85% according to DIN ETS 300019-1-3; Connector for ext. power supply unit; PTT-button, microphone, loudspeaker and volume knob; IP 20; LCD: 2.2" QVGA TFT, Semi-inverse semi-transparent screen; Dimensions: 300x255x80mm (483mm height with Microphone); Weight: 1700g

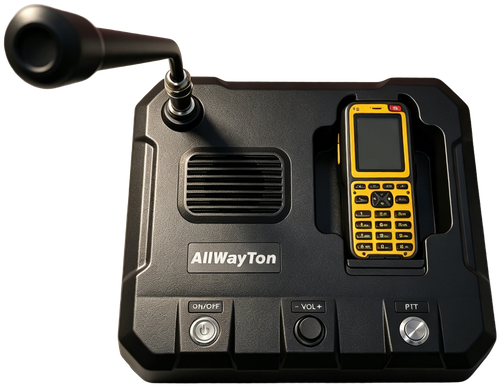

AllWayTon Fixed Radio GTT 810

Frequently Asked Questions

What is the AWT GTT 810?

The AWT GTT 810 is a GSM-R desktop handsfree communication terminal manufactured by Beijing AllWayTon Co., Ltd. It integrates a GSM-R phone module for fixed office use in dispatch rooms and control centers.

What are the key features?

Key features include VGCS, VBS, eMLPP, functional numbering, Follow Me, location-dependent addressing, railway emergency calls, voice call recording, 20dB background noise reduction, and echo suppression.

What is the power supply?

It uses 5V DC power supply with a maximum power consumption of 15W, and features a connector for an external power supply unit for fixed desktop deployment.

What standards does it comply with?

It is fully compliant with EIRENE FRS and SRS specifications, EMC according to DIN EN 50121-4 railway standard, and supports ETSI TS 102 933 interference rejection.
