Name: AllWayTon GSM-R Phone GPH220R
Brand: AllWayTon

Introduction

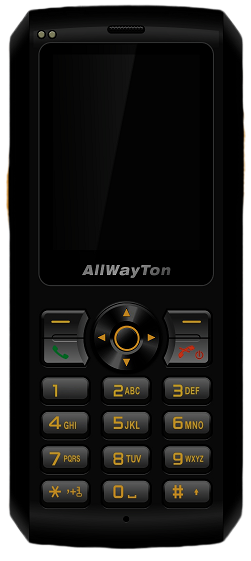

The GPH220R is a lightweight GSM-R railway handheld phone manufactured by Beijing AllWayTon Co., Ltd. Weighing only 153g with IP54 protection, it features a bar-type Android platform with traditional hard keys, PTT key, and a rear 5MP camera. Key specifications include a 2450mAh low-temperature battery with 134 hours of standby time and anti-skid design.

The GPH220R supports VGCS, VBS, eMLPP, function numbering, Follow Me, location-dependent addressing, and railway emergency calls. It provides comprehensive GSM-R function management including railway calls, FN management, and VGCS/VBS group management. It complies with all mandatory requirements in the EIRENE FRS and SRS specifications.

Features: Voice Group Call (VGCS); Voice Broadcast Service (VBS); Enhanced Multi-Level Precedence and Pre-emption (eMLPP); Function numbering; Follow me; Location dependent addressing; Railway emergency calls; GPRS class 10，Class В; Supplementary service; Standard AT commands, AWT extended commands; SIM Application Toolkit; RF monitoring on GSM and GPRS; Based on Android™ Platform

Product Specification: GSM-R, GSM 900/1800; ETSI TS 102 933-1 V2.1.1 IM3 resistant; Power class 4, 2W, HR/FR/EFR/AMR; Micro USB, WAP, Bluetooth®; LCD: 2.2″QVGA TFT, Semi-inverse semi-transparent screen; 1GB RAM+8GB ROM; integrated high-capacity SDHC cards up to 32GB; Battery capacity: Li-Ion 2450mAh, low temperature battery; Battery theoretical standby time: 134 hours; Operating temperature -25°C to 55°C; Charger: Micro-USB charger; Dimensions: 125.6x56.3x19.3mm; Weight: 153g; 5MP rear camera; IP54, Anti-Skid

GSM-R function（eMLPP，PTT）

Railway calls: Quick dial; Train number dial; Engine number dial; Coach number dial; Shunting and Maintenance; Train Controller

Management of FN: Registration; De-registration; Forced De-registration; Interrogation; Change FN; De-register all FNs; Synchronize FNs

VGCS/VBS: Initiate VGCS; Initiate VBS; Railway emergence call; Manage group ID; Manage broadcast ID; Switch of railway emergency call

Maintain FN: Train number; Engine number; Coach number; Function number

Allwayton GSM-R Phone GPH220R

Frequently Asked Questions

What is the AllWayTon GPH220R?

The GPH220R is a lightweight GSM-R railway handheld phone manufactured by Beijing AllWayTon Co., Ltd. Weighing only 153g, it features IP54 anti-skid protection, a 5MP rear camera, and a 2450mAh battery.

What are the key features?

Key features include VGCS, VBS, eMLPP, function numbering, Follow Me, location-dependent addressing, railway emergency calls, and comprehensive GSM-R function management.

What is the battery life?

The GPH220R has a 2450mAh Li-Ion low-temperature battery with approximately 134 hours of theoretical standby time.

What standards does it comply with?

It complies with EIRENE FRS and SRS specifications and supports railway calls, FN management, and VGCS/VBS group management.
