Name: AllWayTon GSM-R Phone OPH210R
Brand: AllWayTon

Introduction

The OPH210R is a GSM-R railway handheld phone manufactured by Beijing AllWayTon Co., Ltd. It is designed for railway operators and features an Android bar-type platform with physical keyboard, PTT key, REC key, and function keys (I, II, III, IV). Key specifications include IP68 dust and water resistance, a 5500mAh low-temperature battery with 262 hours of standby time, and ETSI TS 102 933 V2.1.1 IM3 interference rejection technology.

The OPH210R supports voice group call (VGCS), voice broadcast (VBS), eMLPP, function numbering, Follow Me, location-dependent addressing, and railway emergency calls. It complies with all mandatory requirements in the EIRENE FRS and SRS specifications.

Features: Voice Group Call (VGCS); Voice Broadcast Service (VBS); Enhanced Multi-Level Precedence and Pre-emption (eMLPP); Function numbering; Follow me; Location dependent addressing; Railway emergency calls; GPRS class 10，Class В; Supplementary service; Standard AT commands, AWT extended commands; SIM Application Toolkit; RF monitoring on GSM and GPRS; Man down function (option); Voice Call Recording; Based on Android™ Platform

Product Specification: GSM-R, GSM 900/1800; ETSI TS 102 933-1 V2.1.1 IM3 resistant; Power class 4, 2W, HR/FR/EFR/AMR; Micro USB, GPS, WAP, Bluetooth®; LCD: 2.2″QVGA TFT, Semi-inverse semi-transparent screen; 1GB RAM + 8GB ROM; integrated high-capacity SDHC cards up to 32GB; Battery capacity: Li-Ion 5500mAh, low temperature battery; Battery theoretical standby time: 262 hours; Operating temperature -25°C to 55°C; Charger: Micro-USB charger, battery-only charger, desktop charger; Dimensions: 142.7x63x30.8mm; Weight: 270g; IP68 dust and water resistant

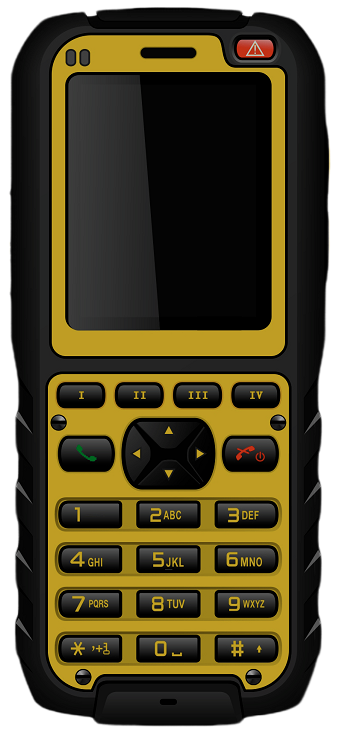

Allwayton GSM-R Phone OPH210R

Frequently Asked Questions

What is the AllWayTon OPH210R?

The OPH210R is a GSM-R railway handheld phone manufactured by Beijing AllWayTon Co., Ltd. It is designed for railway operators requiring professional GSM-R communication with IP68 protection and a 5500mAh battery.

What are the key features?

Key features include VGCS, VBS, eMLPP, function numbering, Follow Me, location-dependent addressing, railway emergency calls, GPRS class 10, Bluetooth, GPS, and a 2.2" QVGA TFT semi-transparent screen.

What is the battery life?

The OPH210R has a 5500mAh Li-Ion low-temperature battery with approximately 262 hours of theoretical standby time.

What standards does it comply with?

It complies with ETSI TS 102 933-1 V2.1.1 IM3 interference rejection standards and all mandatory EIRENE FRS and SRS specifications.
