About us

Beijing AllWayTon Co., Ltd. was founded in 2015 and has long been dedicated to the field of railway-dedicated wireless communications. As a high-tech enterprise integrating R&D, manufacturing, sales, and technical services, the company focuses on railway operational safety and dispatching communication needs. Our product portfolio covers GSM-R handheld terminals, onboard communication equipment, and next-generation 5G-R multi-mode handheld terminals, onboard communication modules, IoT terminals, andsupporting testing tools for the future railway mobile communication system.

Our products have been deployed in over 30 countries and regions worldwide, and we continue to participate in railway communication projects across global markets. Currently, the company is advancing the development of 5G-R series products, focusing on key requirements such as railway-dedicated frequency bands, mission-critical communications, high-reliability connectivity, and the smooth evolution from GSM-R to 5G-R. We are conducting independent R&D of core communication modules and terminal products to support the upgrade of China's railway communication equipment towards 5G, intelligence, and internationalization.

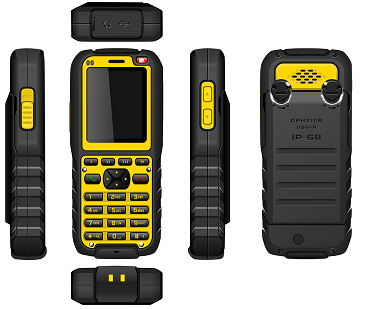

GSM-R Phone AWT OPH-210R

GSM-R Phone AWT OPH210R

  • GSM-R, GSM 900/1800
  • ETSI TS 102 933-1 V2.1.1 IM3 resistant
  • Power Level 4, 2W, HR/FR/EFR/AMR
  • Micro USB, GPS, WAP, Bluetooth®
  • Audio background noise suppression greater than 12dB
  • LCD: 2.2″QVGA TFT, Semi-inverse Semi-transparent Screen
  • 1GB RAM + 8GB ROM; integrated high-capacity SDHC cards up to 32GB
  • Battery: Li-Ion 5500mAh, low temperature battery
  • Battery theoretical standby time: 262 hours
  • Operating temperature: -25°C to 55°C
  • Charge: Charger: Micro-USB charger, battery-only charger, desktop charger
  • Dimension: 142.7x63x30.8mm
  • Weight: 270g
  • IP68 dust and water resistant
  • 3rd-order anti-interference
  • Sun Screen
  • Voice Call Recording
  • IP68
  • 3.5mm OMTP headphone jack
  • Desktop charger + Micro-USB
  • Location(GPS)
  • Thickness 30.8mm
  • Android™ 5.0 Platform
  • 5500mAh Battery
See More

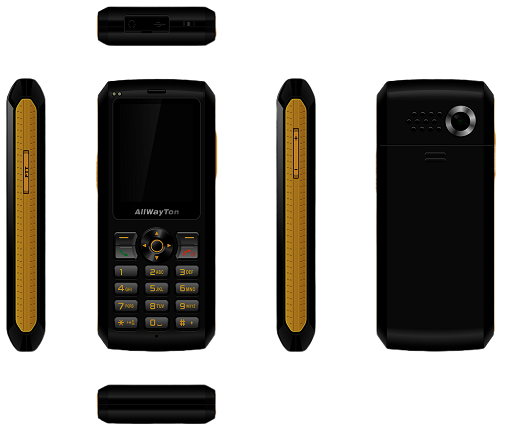

GSM-R Phone AWT GPH220R

  • GSM-R, GSM 900/1800
  • ETSI TS 102 933-1 V2.1.1 IM3 resistant
  • Power Level 4, 2W, HR/FR/EFR/AMR
  • Micro USB, WAP, Bluetooth®
  • LCD: 2.2″QVGA TFT, Semi-inverse Semi-transparent Screen
  • 1GB RAM+8GB ROM; integrated high-capacity SDHC cards up to 32GB
  • Battery capacity: Li-Ion 2450mAh, low temperature battery
  • Battery theoretical standby time: 134 hours
  • Operating temperature: -25°C to 55°C
  • Charger: Micro-USB charger
  • Dimensions: 125.6x56.3x19.3mm
  • Weight: 153g
  • 5MP Rear Camera
  • IP54, Anti-Skid
See More
GSM-R Phone AWT GPH-220R

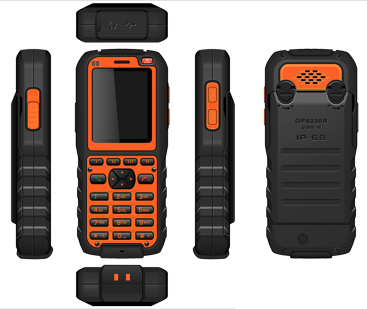

GSM-R Phone AWT OPS-230R

GSM-R Phone AWT OPS230R

  • Shunting mode
  • Alerting a controller
  • Link assurance signal
  • GSM-R, GSM 900/1800
  • ETSI TS 102 933-1 V2.1.1 IM3 resistant
  • Power Level 4, 2W, HR/FR/EFR/AMR
  • Micro USB, GPS, WAP, Bluetooth®
  • Audio background noise suppression greater than 12dB
  • LCD: 2.2" QVGA TFT, Semi-inverse Semi-transparent Screen
  • 1GB RAM + 8GB ROM; integrated high-capacity SDHC cards up to 32GB
  • Battery: Li-Ion 5500mAh, low temperature battery
  • Battery theoretical standby time: 262 hours
  • Operating temperature: -25°C to 55°C
  • Charge: Charger: Micro-USB charger, battery-only charger, desktop charger
  • Dimension: 142.7x63x30.8mm
  • Weight: 270g
  • IP68 dust and water resistant
  • 3rd-order anti-interference
  • Sun Screen
  • Voice Call Recording
  • IP68
  • 3.5mm OMTP headphone jack
  • Desktop charger + Micro-USB
  • Location(GPS)
  • Thickness 30.8mm
  • Android™ 5.0 Platform
  • 5500mAh Battery
See More

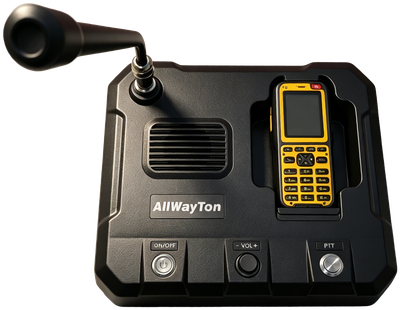

Fixed Radio AWT GTT 810

  • GSM-R desktop handsfree terminal
  • Supports VGCS/VBS group call
  • eMLPP, function numbering, Follow Me
  • Location dependent addressing, railway emergency calls
  • Background noise reduction 20dB
  • Perfect voice echo suppression
  • PTT button, microphone, loudspeaker, volume knob
  • Power supply: 5 VDC, max 15W
  • Operating temperature: +5°C to 40°C
  • IP 20 protection
  • Dimensions: 300x255x80mm
  • Weight: 1700g
See More
AWT GTT 810

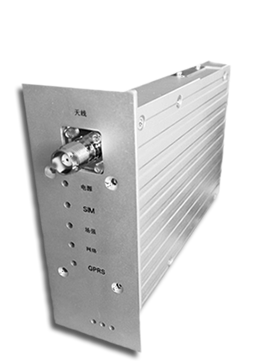

AWT GRM2801

8-Watt Module AWT GRM2801

  • Dimensions: 170.4mm×108mm×35.2mm
  • Weight: 651g
  • 96-pin DIN 41612 backplane connection
  • Operating Temperature: -40°C ~ +85°C
  • TNC 'RX/TX' Antenna Port
  • DC Power Supply: 6.5-50V
  • Support HR, FR, EFR, AMR
  • Third-order intermodulation interference reduction
  • Background noise suppression
  • EIRENE Features
  • GPRS class 8 (8 Watts)
  • TCP/UDP/IP stack
  • PPP stack
  • CSD Data Transmission up to 14.4 kbps
  • AT command tracing
See More

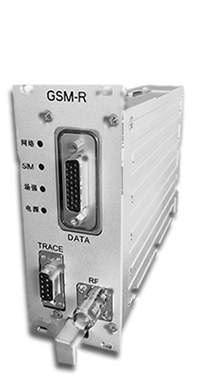

8-Watt Module AWT GRM2820

  • Dimensions: 188.2x106x42.5mm
  • Weight: 895g
  • Operating Temperature: -40°C ~ +105°C
  • TNC 'RX/TX' Antenna Port
  • Power Supply: 12V DC
  • Support HR, FR, EFR, AMR
  • EIRENE Features
  • GPRS class 8 (8 Watts)
  • TCP/UDP/IP stack
  • PPP stack
  • CSD Data Transmission up to 14.4 kbps
See More
GSM-R Module AWT GRM2820
