Name: AllWayTon GSM-R Phone OPS230R
Brand: AllWayTon

Introduction

The OPS230R is a GSM-R Operational Handheld for Shunting (OPS) manufactured by Beijing AllWayTon Co., Ltd. It is designed for maintenance and shunting team members with a dedicated emergency call button, link assurance signal (LAS), and rugged IP68 protection. It features an Android bar-type platform with physical keyboard, function keys, PTT key, and REC key.

The OPS230R supports shunting mode, controller alerting, VGCS, VBS, eMLPP, function numbering, Follow Me, location-dependent addressing, and man-down alert (optional). It complies with all mandatory requirements in the EIRENE FRS and SRS specifications.

Features: Shunting mode; Alerting a controller; Link assurance signal; Voice Group Call (VGCS); Voice Broadcast Service (VBS); Enhanced Multi-Level Precedence and Pre-emption (eMLPP); Function numbering; Follow me; Location dependent addressing; Railway emergency calls; GPRS class 10，Class В; Supplementary service; Standard AT commands, AWT extended commands; SIM Application Toolkit; RF monitoring on GSM and GPRS; Man down function (option); Voice Call Recording; Based on Android™ Platform

Product Specification: GSM-R, GSM 900/1800; ETSI TS 102 933-1 V2.1.1 IM3 resistant; Power class 4, 2W, HR/FR/EFR/AMR; Micro USB, GPS, WAP, Bluetooth®; LCD: 2.2″QVGA TFT, Semi-inverse semi-transparent screen; 1GB RAM + 8GB ROM; integrated high-capacity SDHC cards up to 32GB; Battery capacity: Li-Ion 5500mAh, low temperature battery; Battery theoretical standby time: 262 hours; Operating temperature: -25°C to 55°C; Charger: Micro-USB charger, battery-only charger, desktop charger; Dimensions: 142.7x63x30.8mm; Weight: 270g; IP68 dust and water resistant

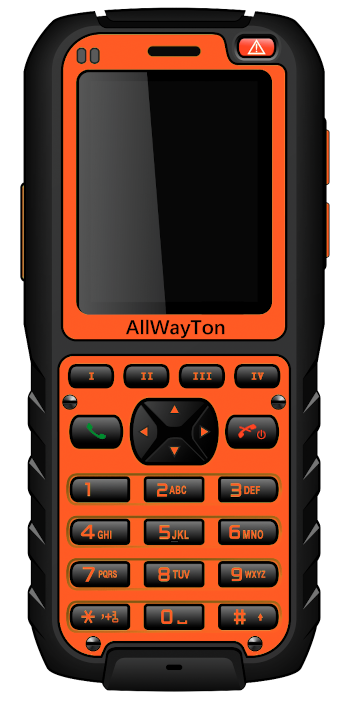

Allwayton GSM-R Phone OPS230R

Frequently Asked Questions

What is the AllWayTon OPS230R?

The OPS230R is a GSM-R Operational Handheld for Shunting (OPS) manufactured by Beijing AllWayTon Co., Ltd. It features a dedicated emergency button, link assurance signal (LAS), and IP68 protection.

What are the key features?

Key features include shunting mode, controller alerting, link assurance signal, VGCS, VBS, eMLPP, function numbering, man-down alert (optional), and voice call recording.

What is the battery life?

The OPS230R has a 5500mAh Li-Ion low-temperature battery with approximately 262 hours of theoretical standby time.

What standards does it comply with?

It complies with all mandatory requirements in the EIRENE FRS and SRS specifications.
